| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-96-3CS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Product Name: | Quilt Quilting Machine | Quilting Width: | 240 Cm |
|---|---|---|---|
| Speed: | 500-1000RPM | Yield: | 10-210 M/H |
| Stitch: | 0.2-0.6 CM | Max Material Thickness: | 5 CM |
| Guarantee: | 1 Year For Main Parts | Needle Bar Distance: | 3inch+3inch |
| Highlight: | Computerized Quilt Making Machine,800RPM Quilt Making Machine,195M/H Quilt Making Machine |
||

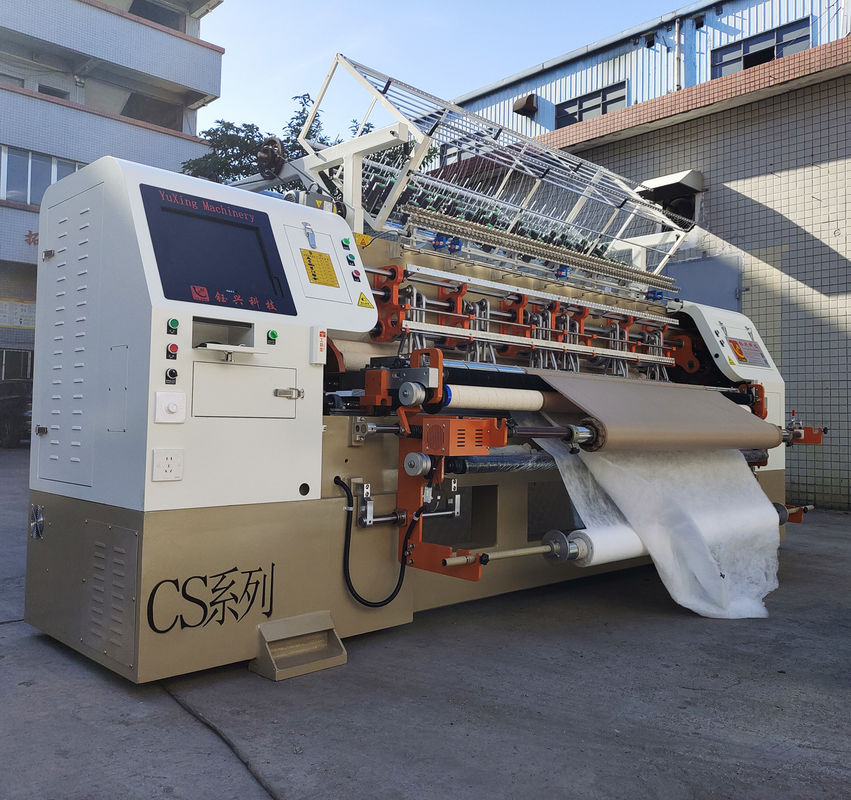

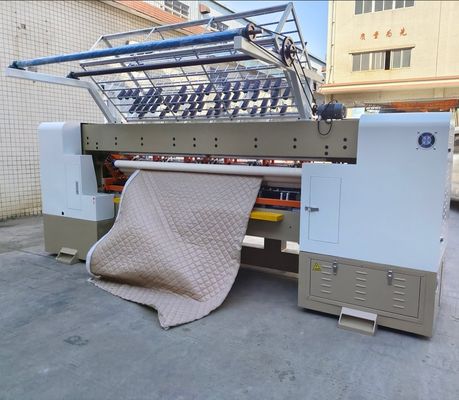

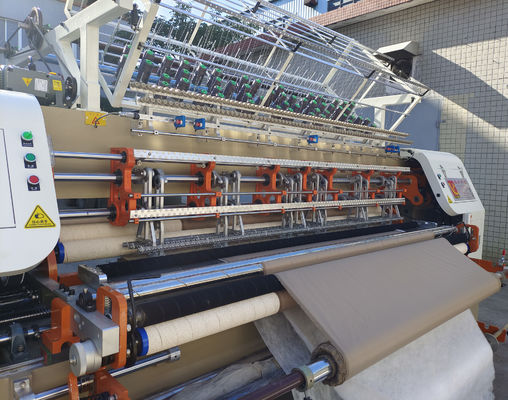

3 Needle Bars 12 Inches Pattern Computerized Quilting Machine Blanket Making Machine
This quilt making machine is a kind of multi needle lock stitch quilting machine. Compared with single needle quilting machine, because it works continuously, it doesn't need worker to put wadding into quilt cover, then fix onto the frame. It is working with rolls. Multi needles works together, sewing with different design stitch. After quilting well, it needs to cut the suitable size, then use overlock sewing machine to sew the edge of quilt. The output is much higher than that of single needle quilting machine. It is widely used for producing high-quality garments, quilt covers,blanket, gloves,sleeping bags, bed spreads,seat covers, and households.
Functions:
1. Easy to draw new desig by mouse and it can connect usb disk to copy new design.
2. Ringing notice and infrared system, which can make the operation safer.
4. Principal axis uses the frequency conversion device.
5. Saddling racks and rollers are driven by servo equipment.
6. Adopt the advanced computer and mechanical manufacturing process technology.
7. Multi-span independent pattern (360°and 180° patterns are available).
8. Compensation function, an effective solution for looping pattern with thick material.
9. Needle bar and press plate are connected by cam-free double-swinging device. This structure is high precision and durable. it can avoid lubrication and dirty material effectively.
10. Adjust speed by the computer from 500r/min to 1000r/min, the stitch can be set between 2 to 6 mm.
11. Advanced and practical up thread-break detection unit, the machine is auto-stop when the thread is broken.
Specification:
| Product Name | High Speed Computerized Shuttle Multi-needle Quilting Machine |
| Model | YXS-96-3CS(3”+3”) |
| Size(L*W*H) | 460*150*170 cm |
| Weight | 4600kgs |
| Quilting width | 245 cm |
| Needle bar space | 3C 152.4mm |
| Quilting thickness | maximum 700gsm. Thicker fabric need to be customized |
| Running speed | 500-1000r/min |
| One hour yield | 10m-210m |
| Needle model | #16,#19 needle |
| X- stroke | 25.4cm |
| Distance between Needles | 25.4mm |
| Stitch | 2-6mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total Power | 6KW |
Pattern show
