Place of Origin: | China |
Brand Name: | Yuxing |
Certification: | CE, ISO9001 |
Model Number: | YXS-96-3D with border trimming |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Export packing |
Delivery Time: | 20 Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 SETS/MONTH |
Size: | 4730*1750*1700 MM | Quilting Width: | 2.45M |
---|---|---|---|
Rolling Speed: | 500-1200 RPM | Productivity: | 10-240 M/H |
Needle Type: | #14,16#,19# | Application: | 50 MM |
Auto Lubrication: | Yes | ||
Highlight: | 2.45M Bed Sheet Making Machine,240M/H Bed Sheet Making Machine,1200RPM Bed Sheet Making Machine |

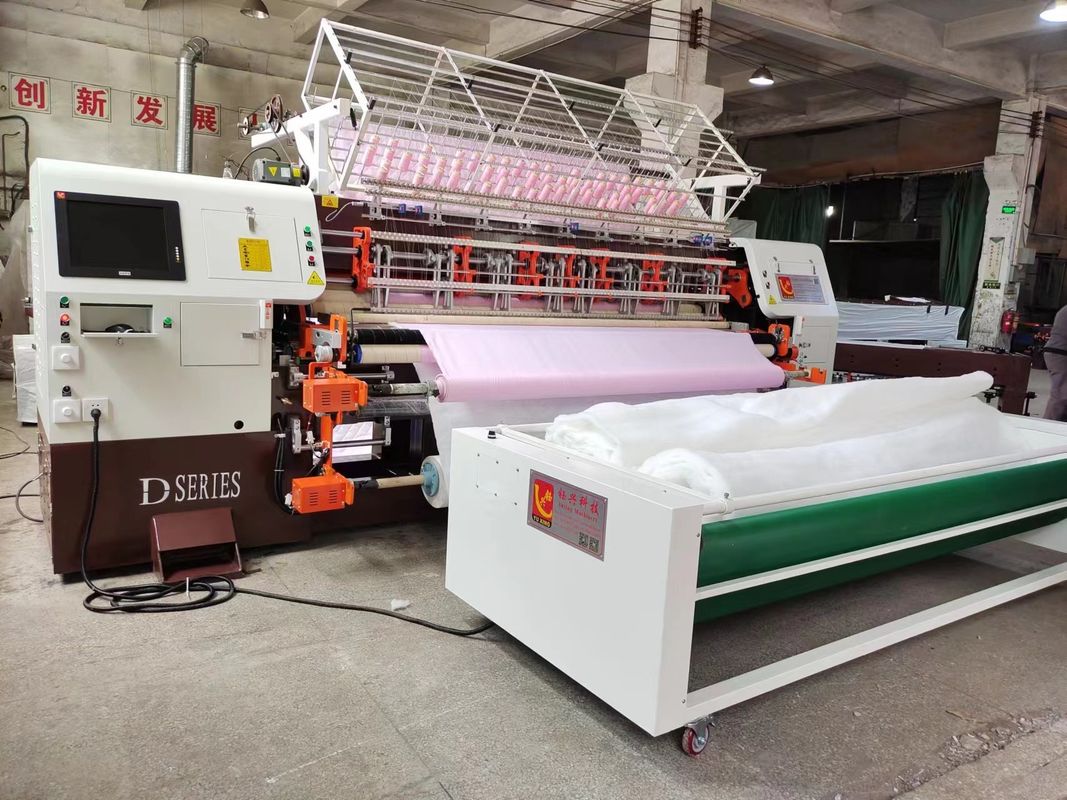

1200rpm Automatic Multi Needle Quilting Bed Sheet Making Machine With Border Trimming
We use the border trimming device on machine, the quilting machine roller can pull fabric tight, so when cutting edge, fabric won't go sides, so it cut more acurrately. and it is suitable to different kind fabric(except the non-glue cotton, this fabric easy to make knife get stuck), when cutting, the cutting place is neat without snagging problem. Besides each knife has one stone near it, you only need to press button, stone will sharpen knife automatically.
Specification:
Model | YXS-96-3D |
Measurement(L×W×H) | 4730mm*1750mm*1700mm |
Needle bar quantity | 3 |
Work width | 2.4m |
Distance between needle rows | 152.4mm |
Space between needles | 1 inch |
X-axis movement dispacent | 304 |
Thickness of quilting (cm) | ≤5 |
Stitch length (mm) | 2~8 |
Output (m/H) | 10~240 |
Type of needle | #14,16#,19# |
Speed(RPM) | 500~1200 |
Total power required | 6.5K Watts |
Voltage |
380V/50HZ; 220V/60HZ |
Gross weight | 5800kg |
Function
1. beam and body are reinforced.
2. new generation of design control system, reliable performance, easy operation, high quilting precision;
3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4. different thickness of the quilted fabric is workable without adjusting the pressing plate
5. Oil lubrication to simplify the maintenance and extend bearings life span.
6. Adjust speed by computer, the speed can reach 1200r/min,the stitch can be set between 2mm-8mm.
7. 360°random quilting and limitless multi-span and tack and jump quilting.
8. Compensation function, avoiding stitch jump problem for thick material.
9. The machine is auto-stop when thread is broken.
10. running state detection and prompts, the operation of the machine at a glance;
11. Mouse easily drawing new patterns, compatible to embroidery patterns.
Border trimming device
Pattern show
