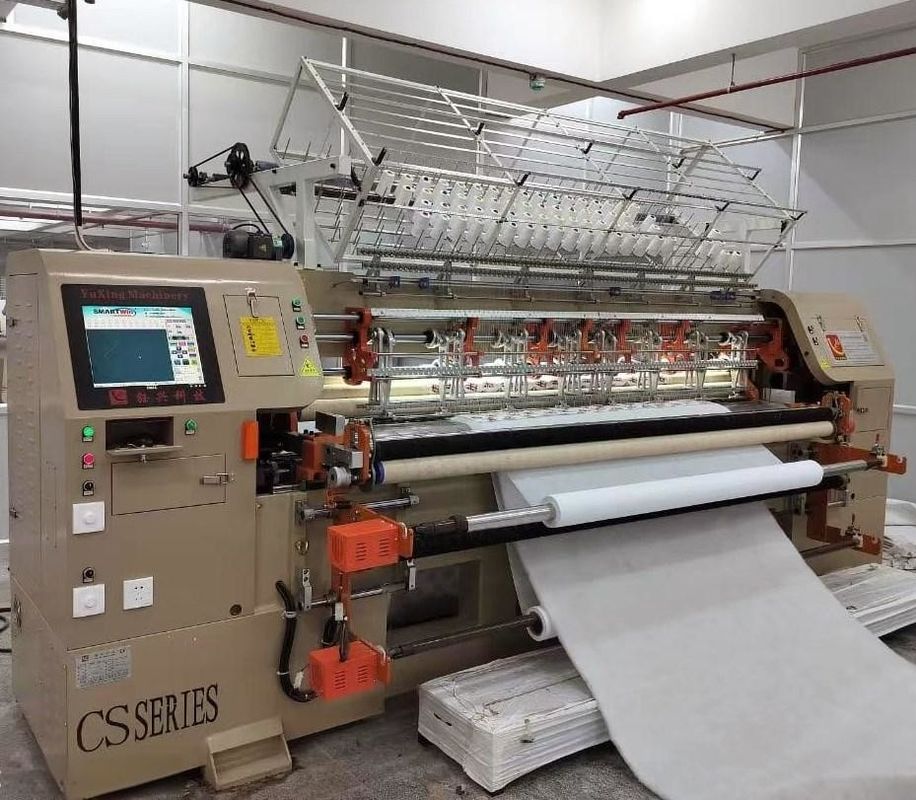

Multi Needle 1000r/min 96 Inch Multi Needle Quilting Duvet Making Machine

Computer Control 96 Inch Duvet Making Machine For Quilting With Multi Needle

 This duvet making machine is a kind of multi needle lock stitch quilting machine. Compared with single needle quilting machine, because it works continuously, it doesn't need worker to put wadding into quilt cover, then fix onto the frame. It is working with rolls. Multi needles works together, sewing with different design stitch. After quilting well, it needs to cut the suitable size, then use overlock sewing machine to sew the edge of quilt. The output is much higher than that of single needle quilting machine. It is widely used for producing high-quality garments, quilt covers,blanket, gloves,sleeping bag, pajamas,bed spread,seat cover, and household

Functions:

1. Easy to draw new desig by mouse and it can connect usb disk to copy new design.

2. Ringing notice and infrared system, which can make the operation safer.

4. Principal axis uses the frequency conversion device.

5. Saddling rack and roller are driven by servo equipment.

6. Adopt the advanced computer and mechanical manufacturing process technology.

7. Multi-span independent pattern (360°and 180° patterns are available).

8. Compensation function, an effective solution for looping pattern with thick material.

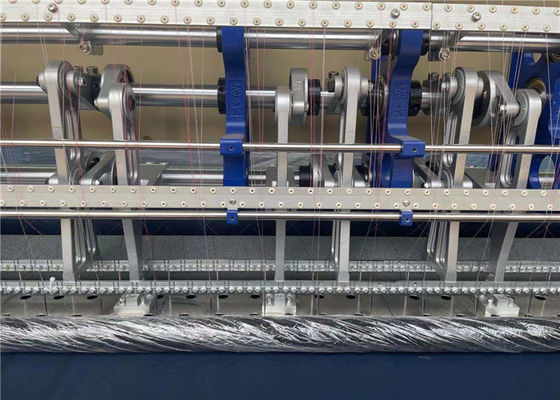

9. Needle bar and press plate are connected by cam-free double-swinging device. This structure is high precision and durable. it can avoid lubrication and dirty material effectively.

10. Adjust speed by the computer from 500rpm to 800r/min, the stitch can be set between 2mm-6 mm.

11. Advanced and practical up thread-break detection unit, the machine is auto-stop when the thread is broken.

Specification:

Warranty Details:

• Warranty Period: 1 year.

During the warranty period:

• Machine components (excluding consumables like needles, hooks, loopers, etc.) are eligible for free replacement.
• Computers can be returned for repair. If a computer malfunctions within the warranty period, it can be replaced at no cost after assessment upon return.
• Consumable parts are not covered by the warranty. Additional consumables are provided with the machine for approximately one year (please refer to the packing list).

Lifetime Customer Support:

• We provide lifetime customer support. Should any issues arise with the machine, customers can report the problem with accompanying photos and brief videos. We will assist in troubleshooting through online guidance.
• For more serious issues, upon request, a technician can be dispatched to the customer's location. Customers are responsible for covering visa fees, round-trip airfare, accommodation, as well as a daily labor cost of USD 150 for the technician.

Pattern show
