| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE, ISO9001 |
| Model Number: | YXS-66-2CS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Warranty: | 1 Year | Measurement: | 360cm*150cm*170cm |
|---|---|---|---|
| Moving Style: | Frame Moved | Quilting Width: | 1700 MM |
| Max.sewing Speed: | 1000 RPM | Needle Row: | 2 Bar / 3 Bars |
| Highlight: | 170CM Lock Stitch Quilting Machine,800r/min Lock Stitch Quilting Machine,195m/h Lock Stitch Quilting Machine |
||

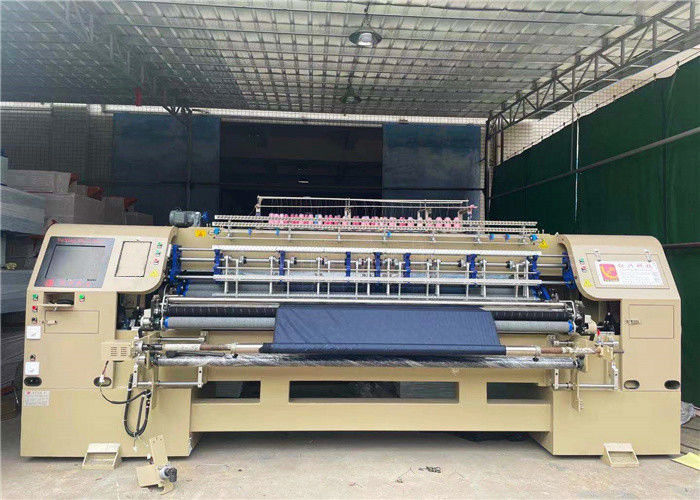

170CM Industrial Multi Needle Lockstitch Sewing Machine Jacket Making Machine
Special size and customized machine is available for customer's special demand.
1. 0.5 inch straight line quilting machine
2. 3 bars, needle bar distance 2"+3”
3. 3 bars, needle bar distance 1"+3"
4. 3 bars, needle bar distance 1.5"+3"
5. Other customized machine per customer's design and material.
Specification:
| Product Name | C series computer shuttle(lock stitch) multi-needle quilting machine |
| Model |
YXS-66-2CS #7 |
| Dimension(L*W*H) | 360cm*150cm*170cm |
| Gross weight | 3.5 tons |
| Quilting width | 170cm |
| Needle bar space | 3 inches |
| Quilting thickness | maximum 5cm |
| Rolling speed | 500r/min-1000r/min |
| Capacity | 10-210m/h |
| Needle type | #14, #16,#19 |
| X-axis movement | 254mm |
| Needle space | 1 inch |
| Stitch length | 2mm-8mm |
| Rated voltage(AC) | 380V/50HZ,220V/60HZ |
| Power | 4K Watts |
Functions:
Advanced computer and mechanistic technology.
Testing upper thread breakage by infrared system. Machine auto stop when thread broken or used up.
Hundreds pattern is available, more patterns can input in computer.

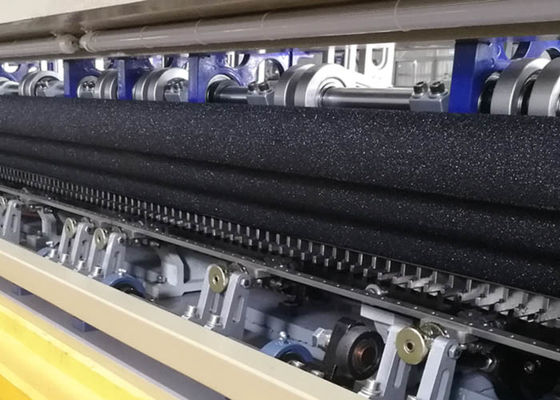

Needle bar running with needle bar frame, no need to add extra lube,avoid the materials be soiled by lube.
Adjust speed by computer, from 500rpm to 800r/min,the stitch can be set between 2mm-6mm.
Needle bar and press plate adopt cam-free double-swinging device, avoiding matieral soiled by oil.
Pattern compensation function, even thick material it has good work effect.
360° and 180° random quilting and limitless multi-span.
Principal axis uses the frequency conversion device.

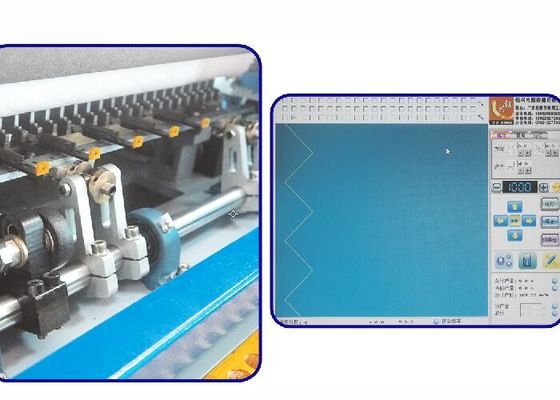

Easy to draw new design by mouse and insert new patterns by connecting usb disk with computer
Other models available:
1) Based on different work width : 82", 96", 118", 128" .
2) Based on needle bar quantity: 3 needle bar and 2 needle bar both can be chosen. 3 needle bar machine can make bigger size design, usually for home textile factory. 2 needle bar machine make small size design, usually for garments factory.
3) Based on shuttle size: Each machine can make as 10# bobbin or 7# bobbin. 10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin.
Jacket making machine finished Products
