| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-82-2CS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Machine's Size: | 4.1*1.5*1.7 M | Quilting Width: | 82 Inch |
|---|---|---|---|
| Needle Bar Space: | 3 Inches | Quilting Speed: | 1000 Rpm |
| Output: | 10-210 M/H | Machine Warranty: | 1 Year |
| After-sales Service Provided: | Online Video Support | Weight: | 4.5 T |
| Stitch: | 2-8mm | Needle Type: | #14/#16/#19 |
| Highlight: | 82 inches Lockstitch Shuttle Quilting Machine,82 inch Lock Stitch Quilting Machine,Automatic System Lock Stitch Quilting Machine |
||

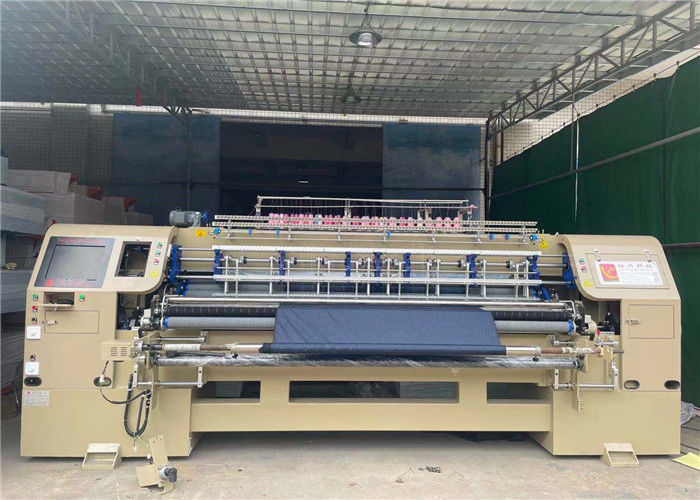

82 inches Lockstitch Shuttle Quilting Machine With Automatic System
Quilting Machine component: use in Japanese motors, Garment part
Function:
1. The pattern editing system is easy to operate.
2. Have the ringing notice when the machine start to work.
3. The machine have infrared system, could make your operation more safe.
4. The principal axis uses the frequency conversion device.
5. The raddling rack and rollers are driven by servo equipment.
6. Machine have adopt the advanced computer and mechanistic technology.
7. Machine can do 360° random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.

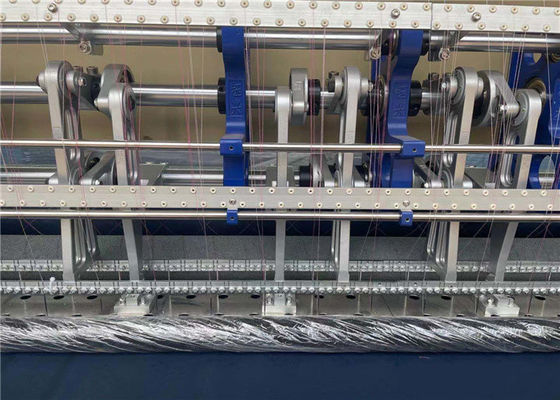

9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.
10. Adjust speed by the computer system, speed can reach 1000r/min, stitch can be set between 2mm-8mm.
11. Needle bars running with needle bar frames, do not need to add extra lube, avoid the materials be soiled by lube.
12. Advanced and practical testing upper thread broken techniques, the machine will auto-stop when the thread broken.
Specification:
| Product Name | Computerized Lock Stitch Multi-needle Quilting Machine |
| Model | YXS-82-2CS |
| Size(L*W*H) | 4300*1500*1700mm |
| Weight | 4500kg |
| Quilting width | 2100mm |
| Needle bar space | 2CS 3''(76.2mm) |
| Quilting thickness | ≤50mm |
| Rolling speed | 500-1000 rpm |
| Output | 10-210m/hour |
| Needle type | #14, #16, #19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
