| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXL-1A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 25 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 Sets/month |
| Quilting Area Width: | 1200-2400 MM | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Online Support,Video Technical Support |
| Max Sewing Thickness: | 60 MM | Max Sewing Speed: | 3000 RPM |
| Highlight: | Industrial Single Head Quilting Machine |
||

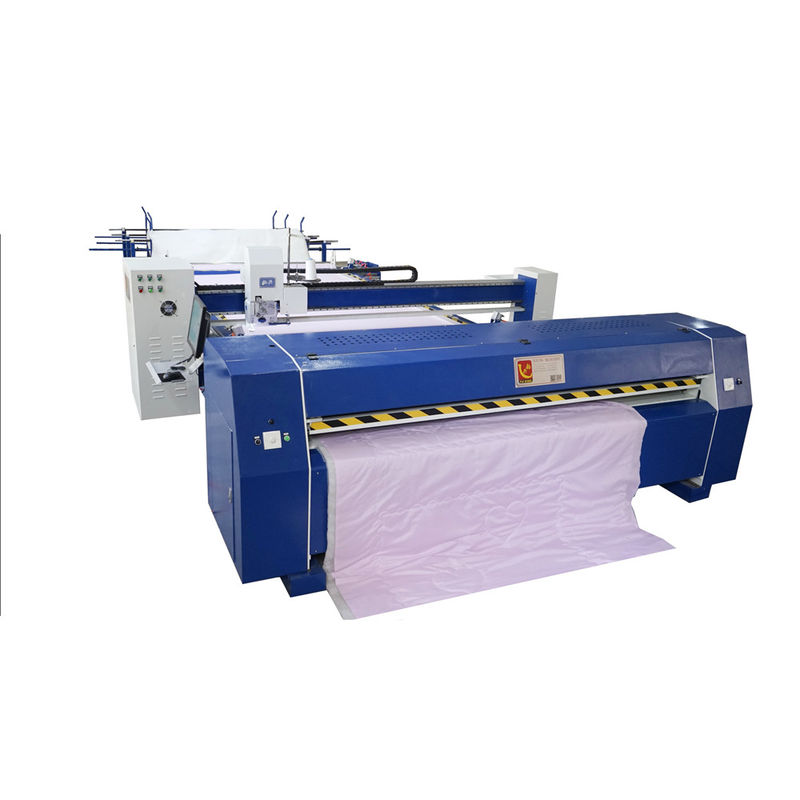

Automatic Feeding and Cutting Single Needle Quilting Machine for Mattress
computer single needle quilting machine for quilt, mattress. continious quilting
1. can make big independent design.
2. automatic feed-in and cutting system.

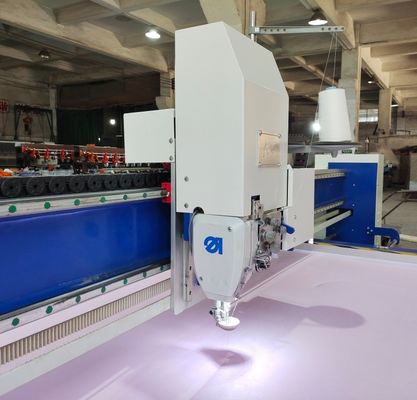

3. extremely large rotary shuttle, Japan servo motor. Imported quilting head.
4. computer can store 10000 patterns.
Specification:
| Product Name | Computer Single Needle Quilting Machine |
| Model | YXL-1A |
| Size(L*W*H) | 13880*3700*2000mm |
| Weight | 3500kg |
| Quilting area width | 1200-2400mm |
| Max.quilting thickness | 60mm |
| Max.quilting speed | 3000rpm |
| Motor | Servo motor |
| Air pressure | 0.6Mpa |
| Rated voltage | 380V/50HZ |
| Power | 9KW |
Function:
Extra-large precision shuttle, effectively prevents thread breakage. Supports arbitrary quilting spans, detects thread breakage without contact, and allows pattern compensation with a single touch.
Fully computer-controlled, stores patterns for long-term use. Users can easily upload custom patterns, making operation simple and efficient.
360° independent quilting, featuring a high-capacity memory system, capable of storing up to 10,000 patterns.
Highly reliable performance, ensures even stitches, maintaining pattern integrity without deformation.
Supports angle and pattern correction, ensuring precise quilting results.
Equipped with a high-precision Japanese servo motor, achieving superior accuracy.
Low noise, minimal vibration, and stable operation, ensuring a smooth quilting experience.
Advanced computer-aided pattern design software, compatible with various quilting files and systems.
Automatic memory function, saves progress even in case of a power outage.
Adjustable settings for thin materials, ensuring optimal stitching quality.

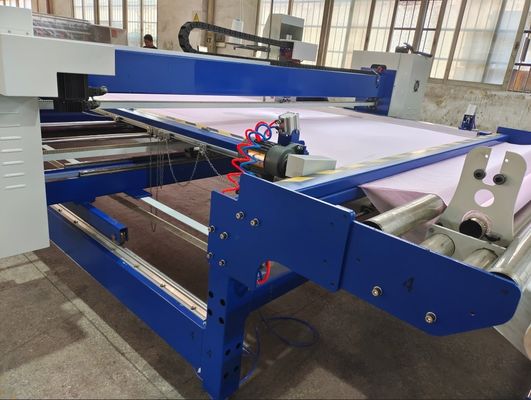

Integrated automatic material feeding, pulling, and cutting system, improving efficiency and consistency.
Auto-stop function, halts operation instantly upon thread breakage, preventing errors and material waste.
