| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-128-3DS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | film packaging |
| Delivery Time: | 12 work days |
| Payment Terms: | Negotiable |
| Warranty: | 12 Months | Weight: | 7300kg |
|---|---|---|---|
| Voltage: | 380V / 50HZ Or 220V /60HZ | Dimension(l*w*h): | 5590*1750*1700mm |
| After-sales Service Provided: | Online Support | Condition: | New |
| Power(w): | 8.5kw | Color: | White & Brown |
| Highlight: | CE Lock Stitch Quilting Machine,128 Inches Lock Stitch Quilting Machine,8.5kw Industrial Quilting Machine |
||

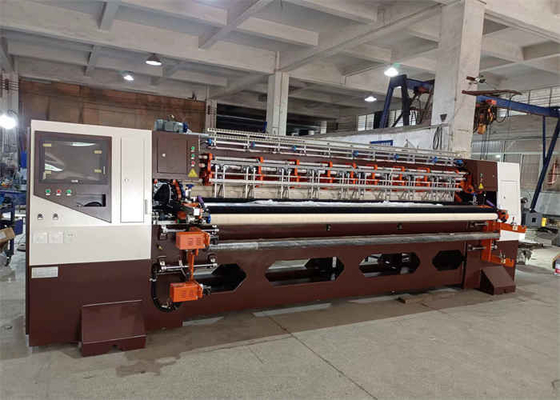

128 Inches High Speed Computerized Lock Stitch Quilting Machine
lockstitch quilting machine catalog.pdf
1. Adopting digital control program.
2. X/Y axis by Servo Motor.
3. The main axis by Panasonic FCM (Frequency Conversion Motor).
4. Prepared some quilting patterns for your choice.
5. Easy and quick editing of patterns.
6. 360°random quilting.
7. Function to quilt independent patterns.
8. On-line help on operation.
9. Speed with 1400R.P.M;stitches between 2-8mm adjustable.
10. Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.
11. Simulation display of quilting.
12. Automatic needle run-up and orientation brake system.
13. Auto-stopping function once thread broken.
14. Safe operation under the protector of lnfrared Sensors.
15. Adopting the Tensile Motor to control the precision for the quilting Patterns (optional).
Specification:
| Product Name | High Speed Computerized Shuttle Lock Stitch Multi-needle Quilting Machine |
| Model | YXS-128-2D/3D |
| Size(L*W*H) | 6100*1450*1700mm |
| Weight | 6800kg |
| Quilting width | 3.2m |
| Needle bar space | 76.2+76.2(3"+3'') |
| Quilting thickness | ≤5cm all patterns |
| Rolling speed | 500-1200r/min |
| Output | 10-240m/hour |
| Needle type | #14, #16,#19 |
| X-axis movement | 204mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power |
8KW |
