Place of Origin: | China |
Brand Name: | Yuxing |
Certification: | CE |
Model Number: | YXS-64-2/3CS |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Packed by plastic film |
Delivery Time: | 15 Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 30 SETS/MONTH |
Product Name: | Computer Quilting Machine | Warranty: | 1 Year |
---|---|---|---|
Dimension(l*w*h): | 3.6*1.5*1.7 M | Quilting Width: | 1.7 M |
Max Sewing Speed: | 1000 RPM | Power: | 4 KW |
Weight: | 4.6 T | After-sales Service Provided: | Video Technical Support |
Highlight: | 200m/H Computerized Quilting Machine,1000RPM Computerized Quilting Machine,1700mm Quilting Machine |

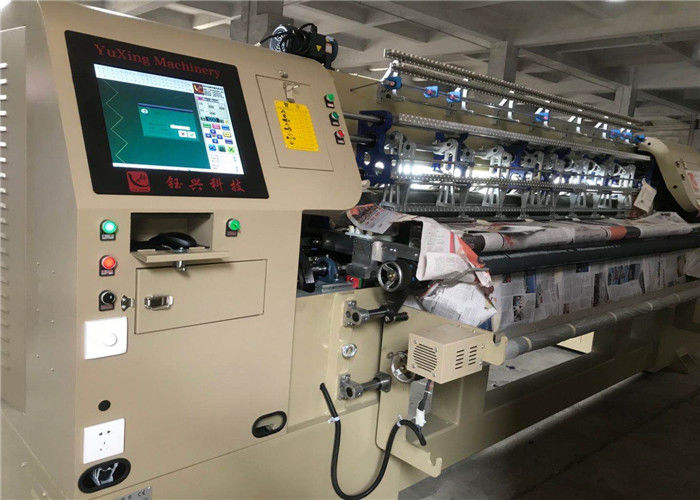

1000 R/MIN 64 Inches computerized shuttle multi-needle quilting machine for garments
Function:
1. Adopt the advanced computer and mechanistic technology.

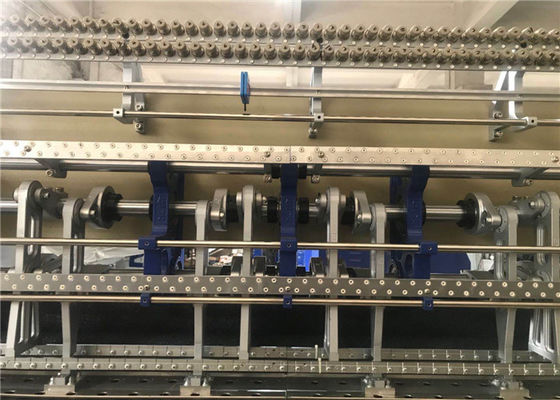

2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4. Saddling rack and roller are driven by servo equipment.
5. Principal axis uses the frequency conversion device.
6. Adjust speed by computer, the speed can reach 1000r/min,the stitch can be set between 2mm-6mm.
7. 360°random quilting and limitless multi-span and independent quilting.
8. Compensation function,an effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10. The infrared system ,make your operate more safe.
11. Pattern editing is easy to learn.
12. Ringing notice when start machine.
Model | YXS-64-2/3CS |
Dimension(L×W×H) | 3600*1500*1700 |
Quantity of needle bar | 3 |
Quilting width | 1700 |
Space between needle rows | 76.2(3') |
Space between needles | 25.4 |
X-axis movement dispacent | 254 |
Thickness of quilting | ≤50 |
Stitch length | 2~8 |
Speed of operation(m/H) | 20~210 |
Model of needle | 16#,19# |
Speed of main shaft(RPM) | 500~1000 |
Total power required | 5KW |
Voltage |
380V/50HZ 220V/60HZ |
Gross weight | 3500kg |
Compare with the C series Lock stitch quilting machine:
Bearing with lock core, stable and not easy to heat
Permanent magnet inductor, less loss current, more stable pattern
Using synchronous belt drive, uniform rotation speed
Encoder program, machine information transmission more accurate
Adopt aviation aluminum strip, lighter material, faster machine speed
Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster
Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.
