| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE IOS9001 |
| Model Number: | YXS-128-3D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | packed by plastic film |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/month |
| Product Name: | Lock Stitch Quilting Machine | Warranty: | A Year |
|---|---|---|---|
| Work Speed: | 500-1200rpm | Quilting Width: | 320cm |
| Needle Space: | 1 Inch | Quilting Thickness: | Max. 50 MM |
| Stitch: | 2-8 MM | Voltage: | 380V/50HZ,/220V/60HZ |
| Highlight: | 320cm Multi Needle Quilting Machine,Multi Needle Quilting Machine,320cm Industrial Quilting Machine |
||

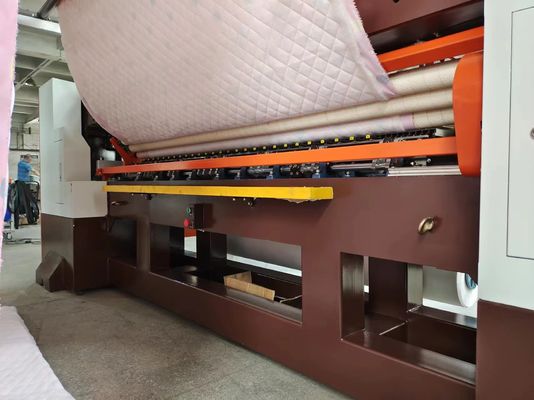

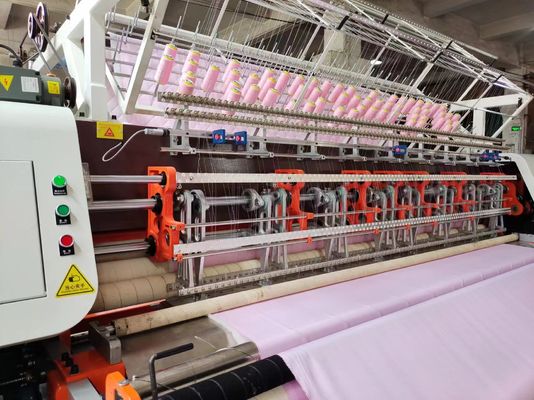

320cm Width Industiral Multi-Needle Quilting Sewing Machines With Servo Motor
Description

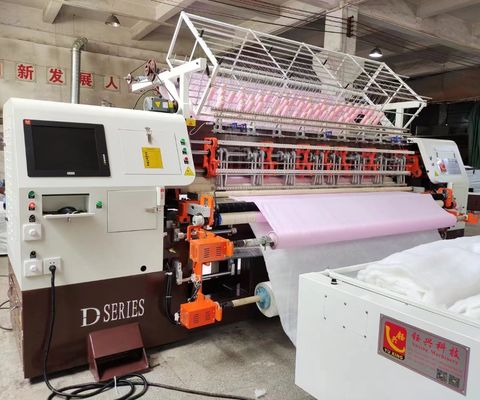

The D series multi needle quilting sewing machine is our newest model. It adopts imported servo motor; new upgrade computer system; machine body and beam are reinforced; maximum speed can reach 1200rpm; output can reach maximum 195m/hour. Hundreds designs can be chosen; compatitble to embroidery designs; when thread broken, machine auto stop. Automatic oil fueling device.
Specification:
| Product Name | D Series Computerized Lock Stitch Multi-needle Quilting Machine |
| Model No. | YXS-128-2D/3D |
| Size(L*W*H) | 5590*1750*1700 |
| Gross Weight | 6600KG |
| Quilting width | 3200mm |
| Needle bar space | 76.2(3") / 152.4(3"+3") |
| Thickness of quilting | ≤50mm |
| Work speed | 500-1200r/min |
| Speed of production | 10-240m/hour |
| Model of Needle | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch length | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total Power | 7.5KW |
Functions:
1,Computerized speed governing , max.1200r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Imported Servo drive equipment.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Design compensation function solves the out of shape problem when sewing thicker material.
6, Machine body and beam are reinforced.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns, and compatotble with embroidery file format
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
